Bonopty® 14G骨穿刺/活检系统
适用于穿透(厚)皮质骨(骨皮质)对骨病变进行消融、活检、注射、抽吸和治疗等
Case:
![](images/AprioMed_BBS14G_0.jpg)
Using Bonopty® extended drill you may pass or sample sclerotic lesions deeper in the bone and also do trans-osseous biopsies.
Gain access into the bone, even through thick cortical bone.
Facilitate multiple sampling, or treatment of lesions.
Achieve excellent core samples with few crush artifacts.
-
Successfully sample somewhat sclerotic lesions.
![](images/AprioMed_BBS14G.jpg)

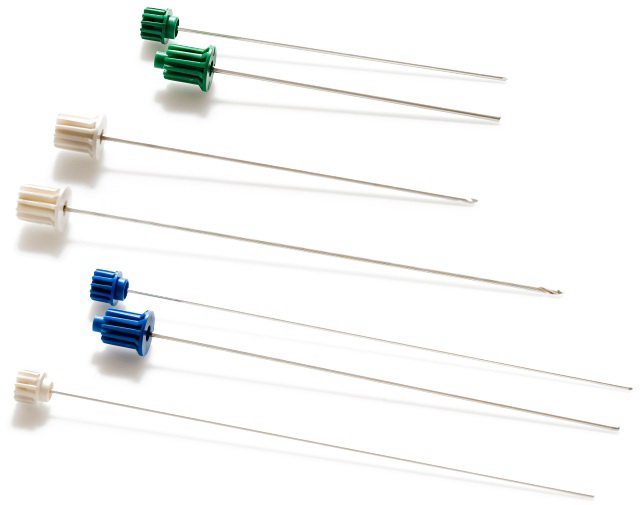

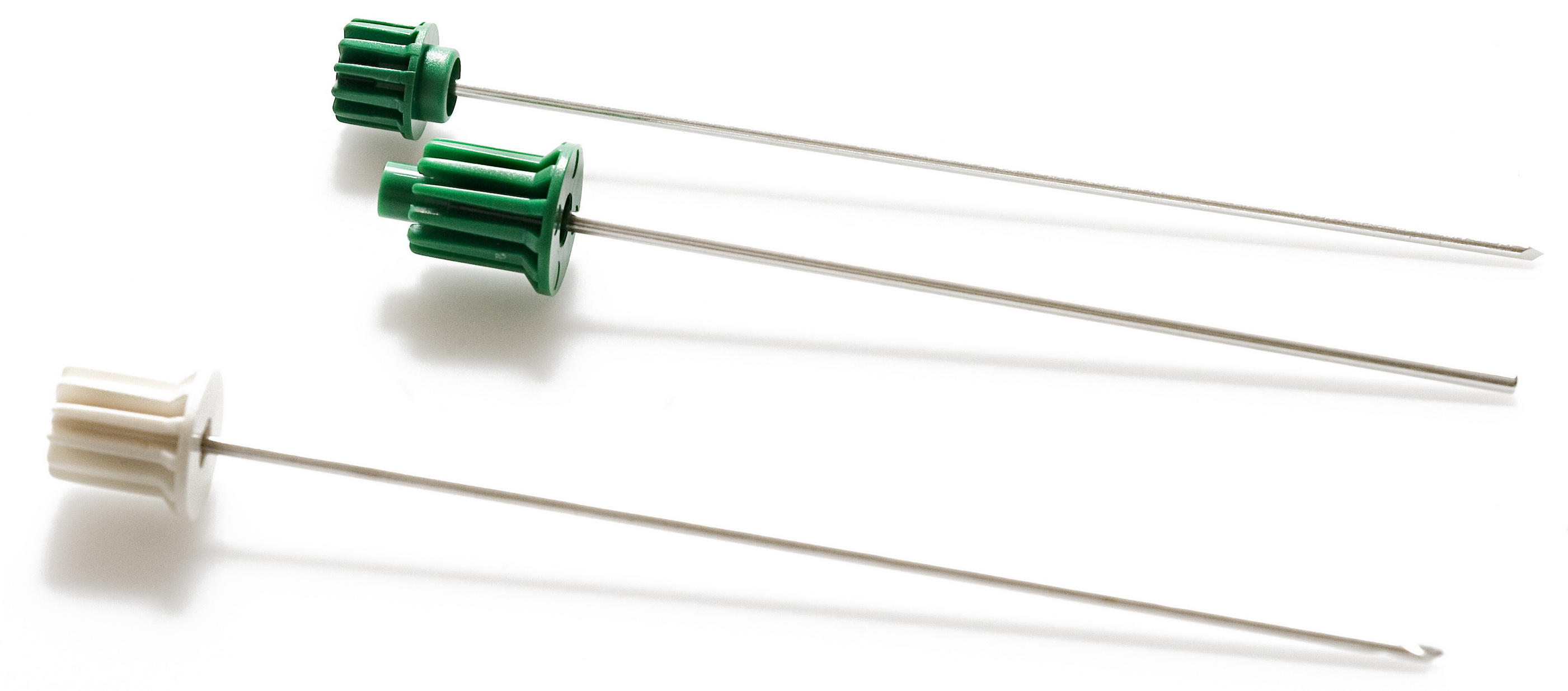

Bonopty 穿刺套件14G
![](Products_AprioMed_BBS14G Files/PS14.jpg)
Includes penetration cannula with stylet (outer diameter 2.1 mm and inner diameter 1.8 mm), drill (outer diameter 1.7 mm), and depth gauge.
Product Number | Product Description | Minimum Order Quantity |
---|---|---|
10-1062 | 14 gauge, 6.5 cm | 5 units |
10-1072 | 14 gauge, 9.5 cm | 5 units |
10-1082 | 14 gauge, 13 cm | 5 units |

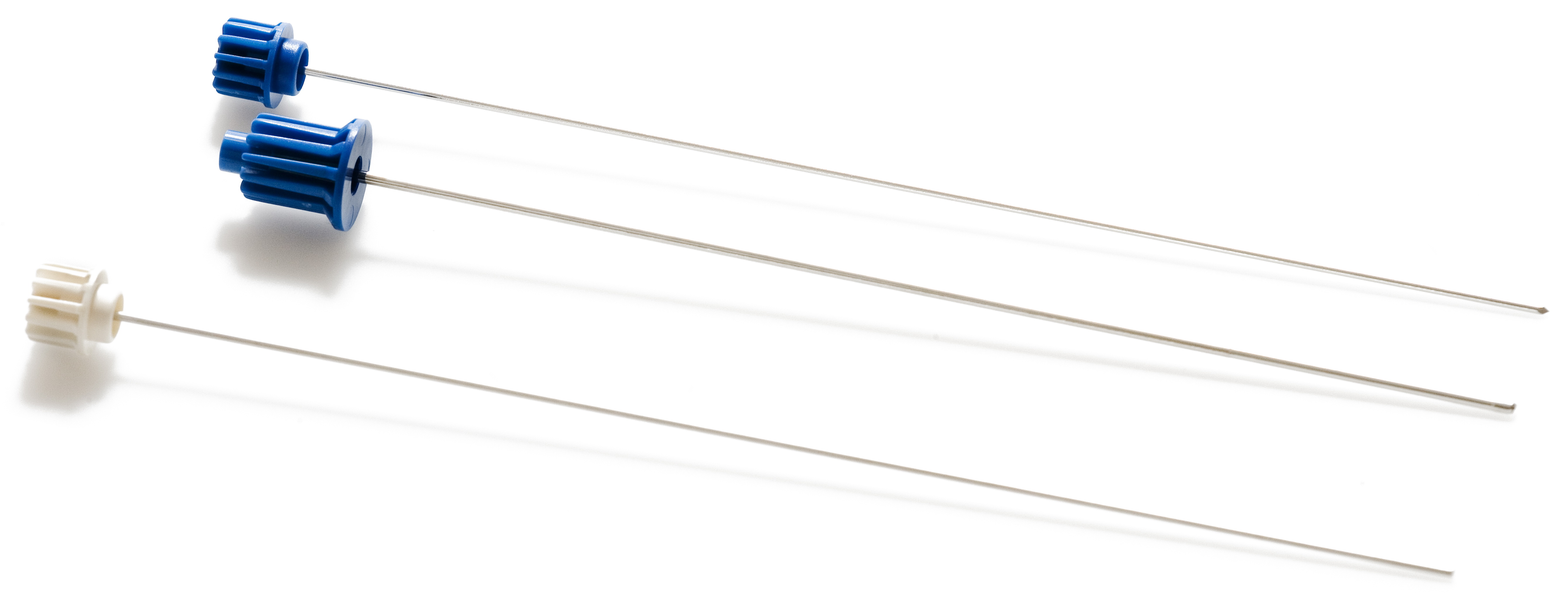

Bonopty 活检套件15G
![](Products_AprioMed_BBS14G Files/BS15.jpg)
Includes biopsy cannula with stylet (outer diameter 1.7 mm and inner diameter 1.3 mm), ejector pin, and depth gauge.
Product Number | Product Description | Minimum Order Quantity |
---|---|---|
10-1063 | 15 gauge, 13 cm | 5 units |
10-1073 | 15 gauge, 16 cm | 5 units |
10-1083 | 15 gauge, 19.5 cm | 5 units |

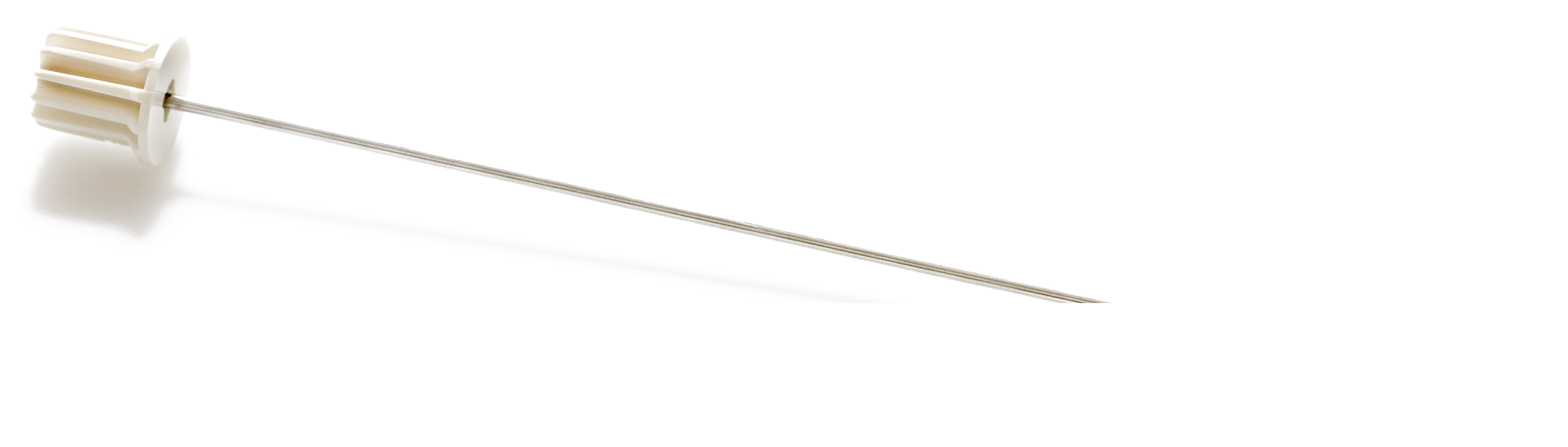

Bonopty 长钻针15G
![](Products_AprioMed_BBS14G Files/ED15.jpg)
Includes extended drill (outer diameter 1.7 mm).
Product Number | Product Description | Minimum Order Quantity |
---|---|---|
10-1074 | 15 gauge, 16 cm | 5 units |
